Product Details:
|
Product Description:

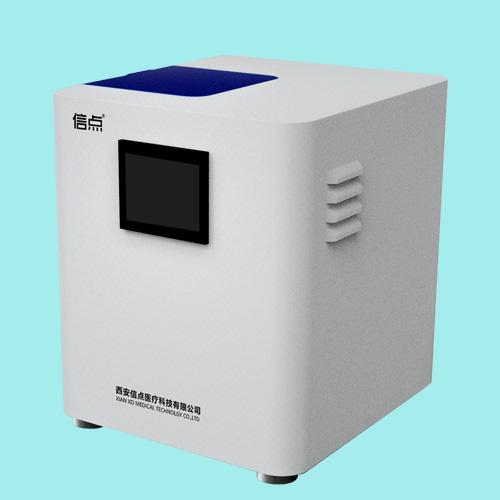

DJ AEOW-1000 type acid oxidation potential water generator (acid water generator) is suitable for single medical department.Disinfection without proportioning, one-button operation control, out of use, easy installation, small space occupation, no pipeline engineering.Before the equipment is equipped with a small processing plant, one-click operation control, easy to use, with small pretreatment device per minute, per minute to generate 1 l water acidification, 1 l alkaline water, equipment is small in size, with acidic water and alkaline water outlet pipe, without water terminal equipment installation, convenient installation, do not take up space, 15 min to complete the whole installation.One-button operation control, control the water conveying system through the panel, and feedback the operation condition through the detection system.
Detailed product parameters:
Product name | Automatic flow DJ AEOW-1000 acid oxidizing potential water generator |
Industry classification | Water disinfection equipment |
Product brand | Xindian |
Main parameter | |
Parameter name | Parameter value |
model | DJ AEOW-1000 |
Acidified water yield | ≥1000mL/min |
Dimensions | 323*295*370mm |
Maximum power consumption | 550VA |
Key indicators of electrolyzed oxidizing water | PH range:2.0-3.0 ORP (redox potential) ≥ 1100mv Available chlorine:50 mg / L-70 mg / L |
operation mode | Continuous generation |
system controller | High performance embedded industrial microprocessor |
system resource | Each function integration, multi gas path program control |
Software information | Software release v1 |
Influent condition | The hardness should be less than 25mg / L after softened water treatment |
Feed water pressure | Feed water pressure: 0.2-0.4mpa |
Intelligent protection | In case of any abnormality, the machine will stop working automatically |
Fault alarm | It has the following alarm functions: salt shortage alarm function; low or high inlet water pressure alarm function; abnormal acid oxidation potential water index alarm function |
Principle of hypochlorous acid formation:
Actual case of customer application of trust point products:
Contact Person:Leigh Ma
