DJ AEOW-6000 acid oxidation potential water generator (acid water generation machine) is a centralized supply system designed by Xi 'an Xin Point Medical Science and Technology for the centralized supply of each department in the whole building. It is suitable for hospitals, large-scale farms, food processing plants and other manufacturers who need to produce a large amount of disinfectant water.
The acidification water output in one minute of the equipment is more than 6000mL/min.It can be used for disinfection of multiple departments and each unit of the whole building at the same time. It can be installed at one time and used by multiple departments at the same time to save the cost of disinfection consumables.The equipment sets the advantages of other DJ AEOW-2000, DJ AEOW-4000 type equipment as a whole, the innovative addition of PLC control system, electrolytic electrolyte controlled by PLC, will not affect the quality of acid oxidized water because of the electrolyte concentration change.PLC automatically adjusts the frequency of the metering pump by calculating the signal of the metering pump, so that the concentration of the electrolytic solution in the electrolytic cell reaches the balance and the electrolytic automatic regulation is realized.
Principle of hypochlorous acid formation:
Detailed parameters of this product:
Product name | Automatic flow DJ AEOW-6000 acid oxidizing potential water generator |
Industry classification | Water disinfection equipment |
Product brand | Xindian |
Main parameter | |
Parameter name | Parameter value |
model | DJ AEOW-6000 |
Acidified water yield | ≥6000mL/min |
Dimensions | 580mm*630mm*1600mm |
Maximum power consumption | 550VA-6000VA |
Floor space for equipment installation | 2㎡-25㎡ |
Number of applicable departments | Applicable to single department |
Key indicators monitoring | Real time monitoring, online display of operation, alarm status, key indicators (pH, ORP, available chlorine) |
Printing system | Print real-time parameters for traceability, print parameters: pH, ORP, available chlorine, current |
Water storage tank | Optional |
Operation interface | Intelligent touch screen |
Key indicators of electrolyzed oxidizing water | PH range:2.0-3.0 ORP (redox potential) ≥ 1100mv Available chlorine:50 mg / L-70 mg / L |
operation mode | Continuous generation |
system controller | High performance embedded industrial microprocessor |
system resource | Each function integration, multi gas path program control |
Software information | Software release v1 |
Influent condition | The hardness should be less than 25mg / L after softened water treatment |
Feed water pressure | Feed water pressure: 0.2-0.4mpa |
Intelligent protection | In case of any abnormality, the machine will stop working automatically |
Fault alarm | It has the following alarm functions: salt shortage alarm function; low or high inlet water pressure alarm function; abnormal acid oxidation potential water index alarm function |

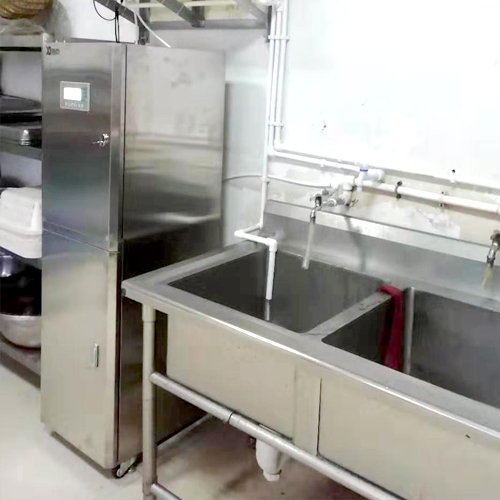

Actual installation of use cases:
