Product Details:
|
Product Description:

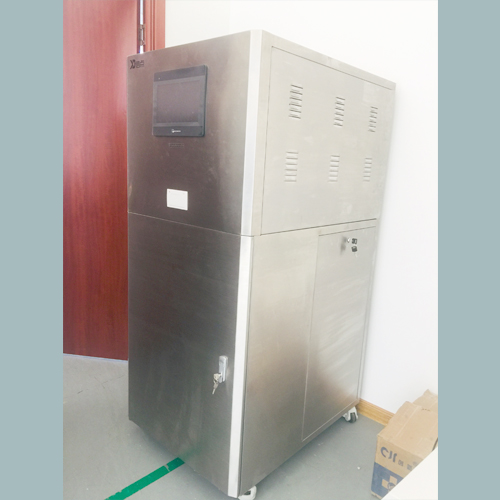

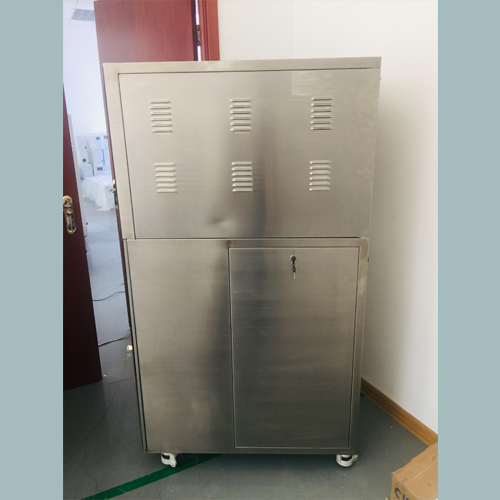

DJ AEOW-8000 acidic oxidation potential water generator (acidizing water generator) can produce acidizing water volume ≥8000mL/min in one minute.The preparation of acid oxidation potential is characterized by large amount of water, fast speed, high safety and simple use.It belongs to the model with large amount of acidification water in the industry.The application is mainly aimed at large hospital inpatient department and other departments of the whole building centralized disinfection supply system.
The core electrolytic cell technology of the equipment belongs to the innovative research and development technology of Xi 'an Xindan Medical Technology Co., Ltd., which is the leading level in the domestic industry.Compared with the company has a remote intelligent protection system, the machine will stop working automatically if there is any abnormality, artificial intelligence remote control, water shortage and electrolyte shortage automatic alarm function.And has the water pressure is too low, too high alarm function, acid oxidation potential water index abnormal alarm function, water leakage automatic alarm function and other new technology functions, the industry priority level.
Principle of hypochlorous acid formation:
Detailed product parameters:
Product name | Automatic flow DJ AEOW-8000 acid oxidizing potential water generator |
Industry classification | Water disinfection equipment |
Product brand | Xindian |
Main parameter | |
Parameter name | Parameter value |
model | DJ AEOW-8000 |
Acidified water yield | ≥8000mL/min |
Dimensions | 720mm*1000mm*1600mm |
Maximum power consumption | 550VA-6000VA |
Floor space for equipment installation | 2㎡-25㎡ |
Number of applicable departments | Applicable to single department |
Key indicators monitoring | Real time monitoring, online display of operation, alarm status, key indicators (pH, ORP, available chlorine) |
Printing system | Print real-time parameters for traceability, print parameters: pH, ORP, available chlorine, current |
Water storage tank | Optional |
Operation interface | Intelligent touch screen |
Key indicators of electrolyzed oxidizing water | PH range:2.0-3.0 ORP (redox potential) ≥ 1100mv Available chlorine:50 mg / L-70 mg / L |
operation mode | Continuous generation |
system controller | High performance embedded industrial microprocessor |
system resource | Each function integration, multi gas path program control |
Software information | Software release v1 |
Influent condition | The hardness should be less than 25mg / L after softened water treatment |
Feed water pressure | Feed water pressure: 0.2-0.4mpa |
Intelligent protection | In case of any abnormality, the machine will stop working automatically |
Fault alarm | It has the following alarm functions: salt shortage alarm function; low or high inlet water pressure alarm function; abnormal acid oxidation potential water index alarm function |
Schematic diagram of centralized supply system of optional acidified water for this product
Actual installation of use cases:
